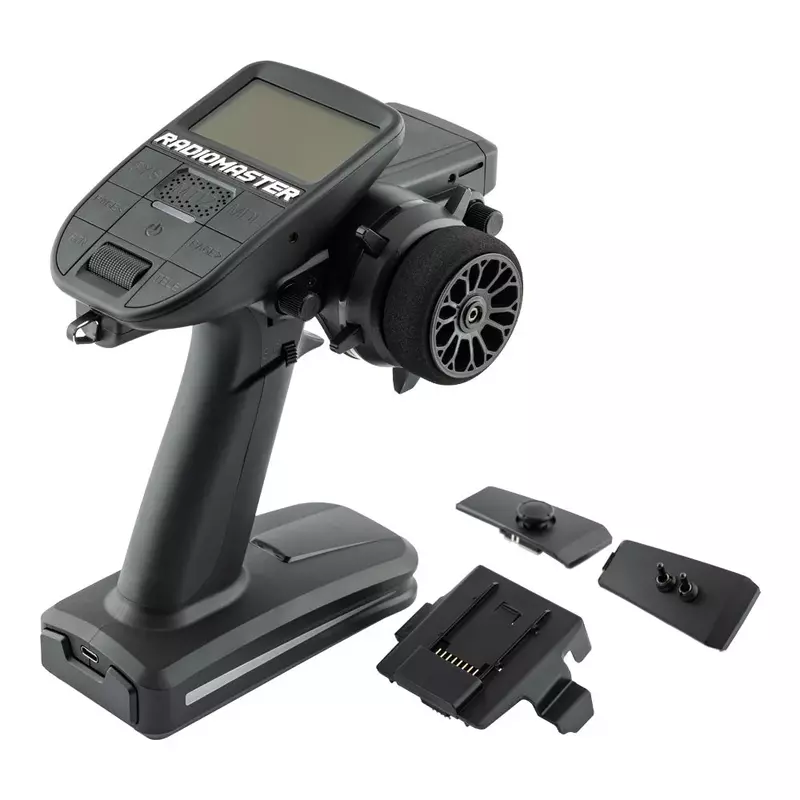

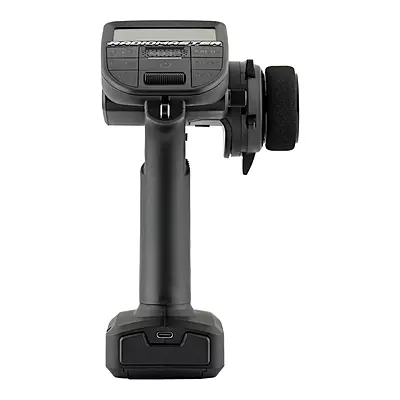

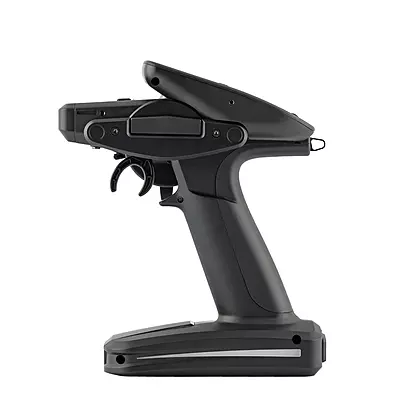

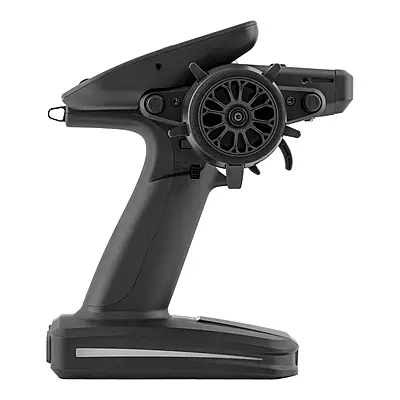

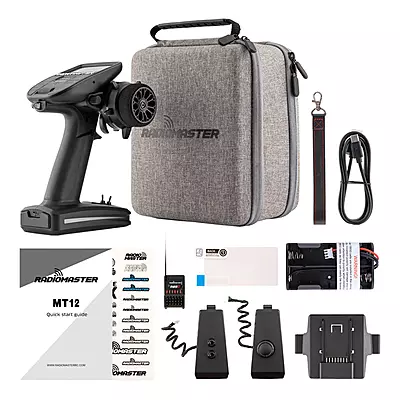

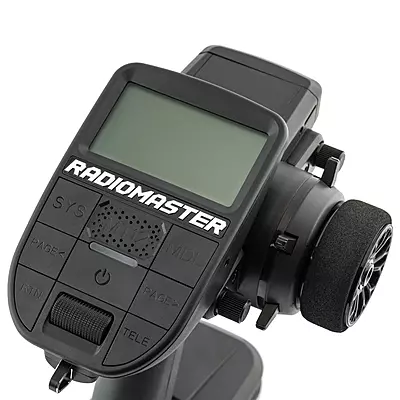

RADIOMASTER MT12 4in1+R85C

The RadioMaster MT12 is a pioneering open-source surface radio, and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-module project. Boasting 10 physical inputs and the capability to handle either 16 or 32 channels*, the MT12 is primed for a wide array of surface models, from cars and trucks to boats and beyond. Featuring extensive customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, prepared to excel in virtually any scenario.

Specs:

MT12:

• Item: MT12 Surface Radio

• Physical dimensions: 177.8*118.4*207.8mm

• Weight: 480 grams

• Operating frequency: 2.400GHz-2.480GHz

• Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz

• Supported protocols: Module dependent

• Operational current: 160mA for 4in1 / 320mA for ELRS

• Operational voltage: DC 6.6-8.4V

• Operating system: EdgeTX

• Control channels: 16 as standard, ability for expansion 32 Channels (4in1 only)

• Display: 128*64 Monochrome LCD

• Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)

• Charging: Built in USB-C Charging

• Firmware Upgrade method: Via USB or SD card

• Wheel and Trigger sensor: Hall-effect

• Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)

R85C (Included with 4in1 version):

• Item: R85C Receiver

• Power supply: DC 4.5 - 8.4V

• Frequency range: 2400-2483.5Mhz

• Support protocol: D8/D16/SFHSS

• Output channel: 5CH PWM

• Antenna type: high-sensitivity 2.4G antenna

• Telemetry power: 100mw / 20dbm

• Weight: 5.7 grams

• Dimensions: 31.0*18.5*13.0 mm
