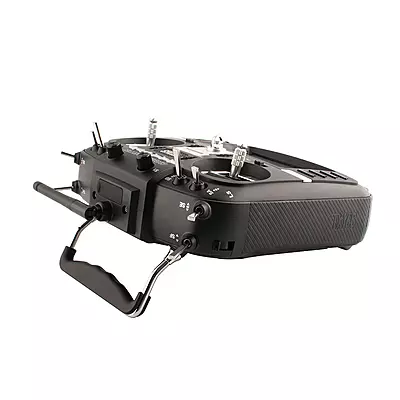

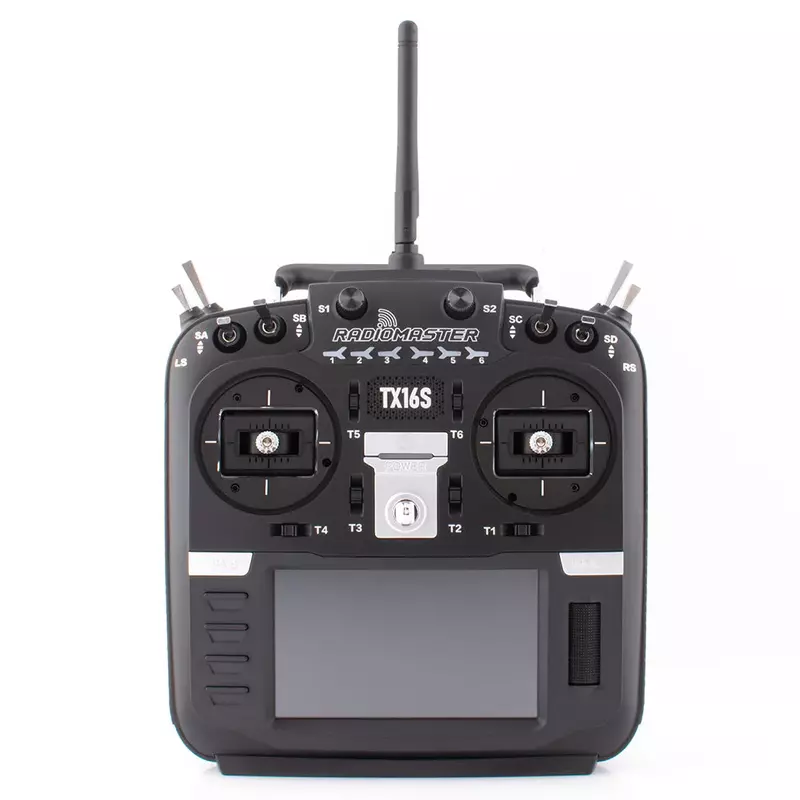

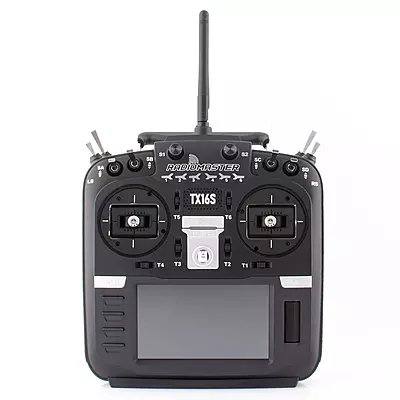

RADIOMASTER-TX16S MK2 TRANSMITTER 4IN1 BLACK HALL GIMBAL V4.0
Features:
Enhanced Circuitry: Improved internal design and optimized power supply.
Reverse-Polarity Protection: New charge circuitry with built-in safety.
Fast Charging: USB-C charging up to 2.2A.
Audio Output: Rear-mounted headphone jack.

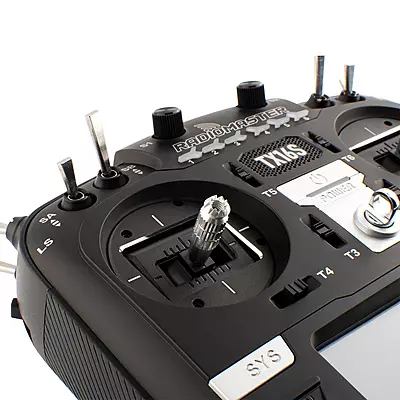

Upgraded Gimbal: V4.0 with better centering and temperature stability (AG01-grade).
Ergonomic Grips: Optional high/low rear grips for comfort.
Refined Knobs: S1/S2 with clear center-detents.
Smooth Sliders: LS/RS with improved feel and detents.

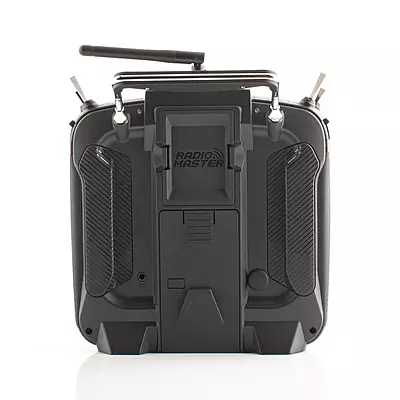

Easy Battery Access: Redesigned battery cover.
Improved Shell: Retooled body with better fit and finish.
Trainer Port: Standard TRS 3.5mm socket.
DIY Expansion: Rear DIY socket for mods.
Durable Plastics: Stronger internal components.
Built-in ExpressLRS: Includes Backpack and 4in1 versions.
The RadioMaster TX16S MKII Transmitter is a versatile and powerful radio controller designed for RC enthusiasts. Featuring Hall sensor gimbals for precise control, a large color display, and multi-protocol support, it offers exceptional performance across various RC models. Its ergonomic design and OpenTX/EdgeTX compatibility make it a highly customizable and user-friendly choice for both beginners and experienced pilots.
Specs:
Brand: RadioMaster
Item: TX16S Mark II
Size: 287x129x184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)； Option 2: Internal ELRS (SX1280)
SD card: 256MB by default, 8GB maximum
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Radio firmware: EdgeTX
Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade

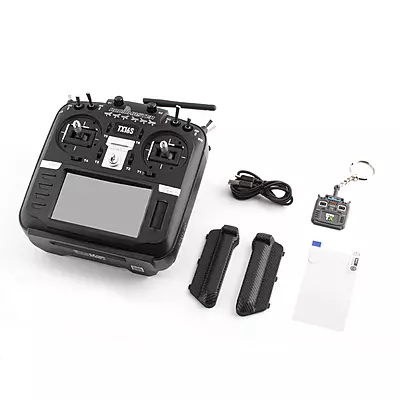

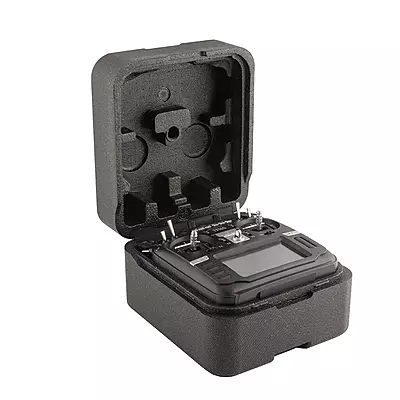

Package Details:
1 x RADIOMASTER-TX16S MK2 TRANSMITTER
