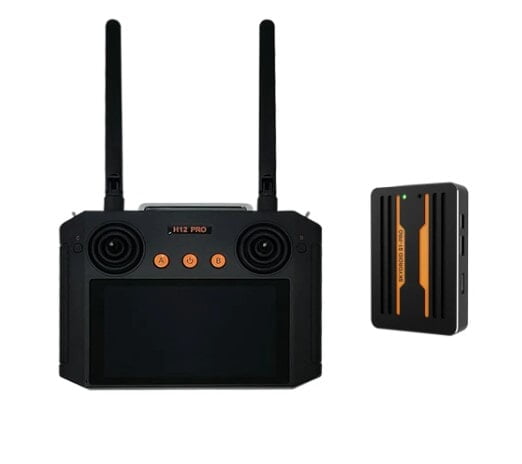

SKYDROID S1 Pro Rover Electric Control System
Features:
Automotive-Grade Sensors
BMI088 gyro, IST8310 compass, LPS22HB barometer.
High-Performance Processing
STM32F407 processor for stable control.
Advanced GPS Support
M10 GPS with dedicated UART port.
Optional 3-in-1 HD Camera
720p video, 12–72V, 6W LED.
Specs:
S1-PRO ECS:
Processor: STM32F407
Gyro: BMI088
Electronic compass: IST8310
Barometer: LPS22HB
Interface: GH1.25
Whip antenna: 30cm/40cm/50cm Optional
PWM Output: 12 OneShot/PWM Output(configurable)
Receiver: Built-in R12 PRO
Receiver Antenna Gain: 4dBm
Receiver Transmit Power: 17.5dBm
GPS: M10
RC OUT SBUS: 1
GPS UART Serial Port: 1
Power Port: 1
LAN Port: 1
CAN Port: 1
Supported models: 3~8 Axes
Power Input Voltage: 2s-18s
USB Voltage: 5V±0.3V
Servo Voltage: 5V±0.3V
Working Temperature: -40~80℃
Size: 68*47*13mm
Weight: 62g
3 in 1 LAN camera (optional):
Resolution: 1080*720 default
Size: 102.1*42.6*36.5mm
Working voltage: 12~72V
Working current: 90mA
LED power: 6W

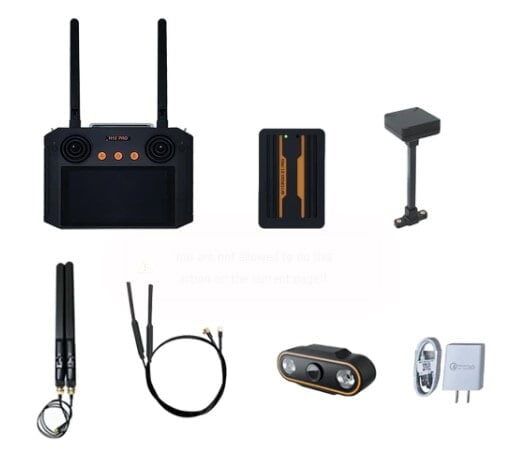

Package Includes:
1 x H12 remote control
1 x S1-PRO
1 x GPS(Optional)
1 x Whip antennas
1 x Flat antenna
1 x 3 in 1 LAN camera (optional)
1 x Charger
