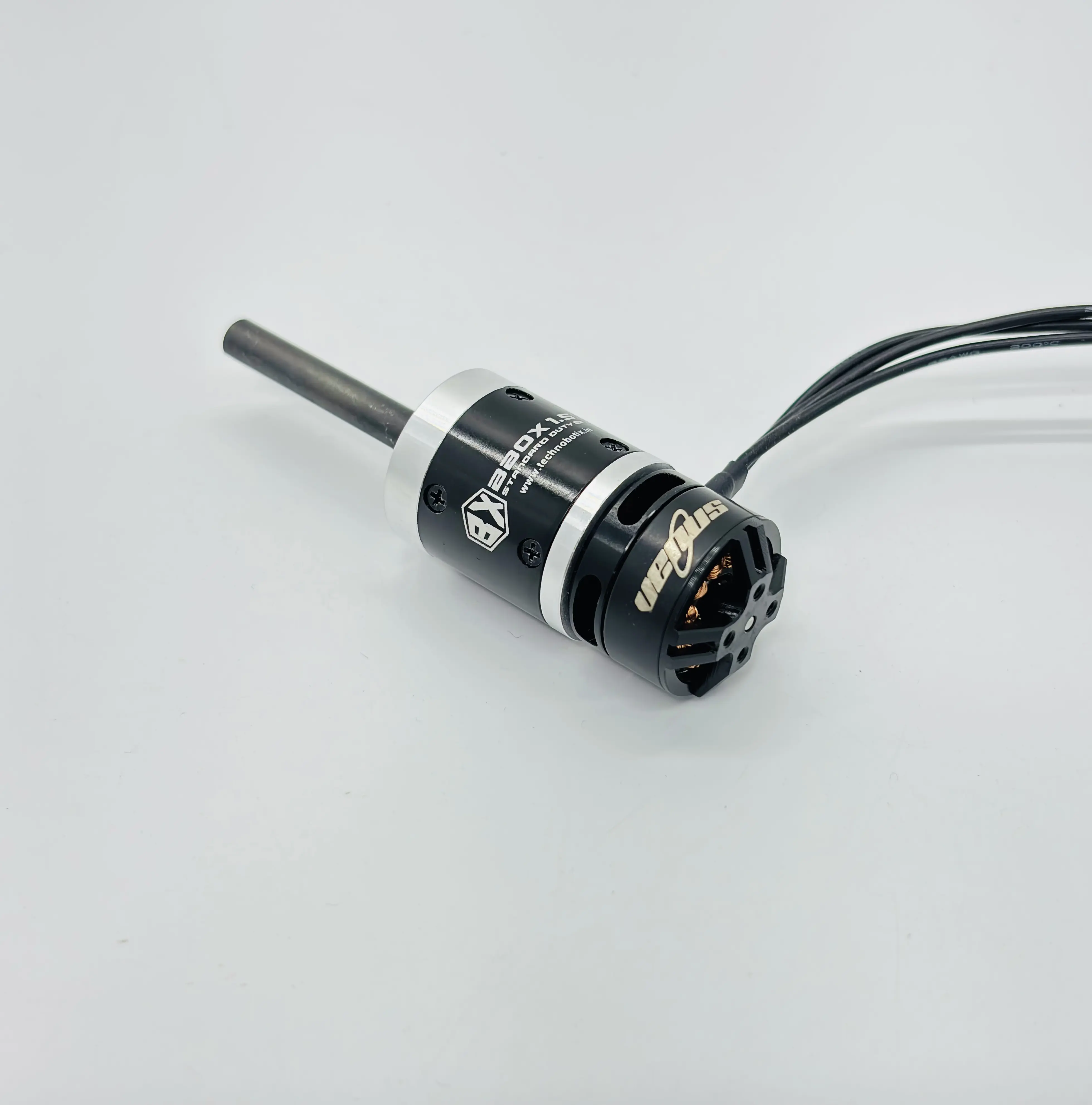

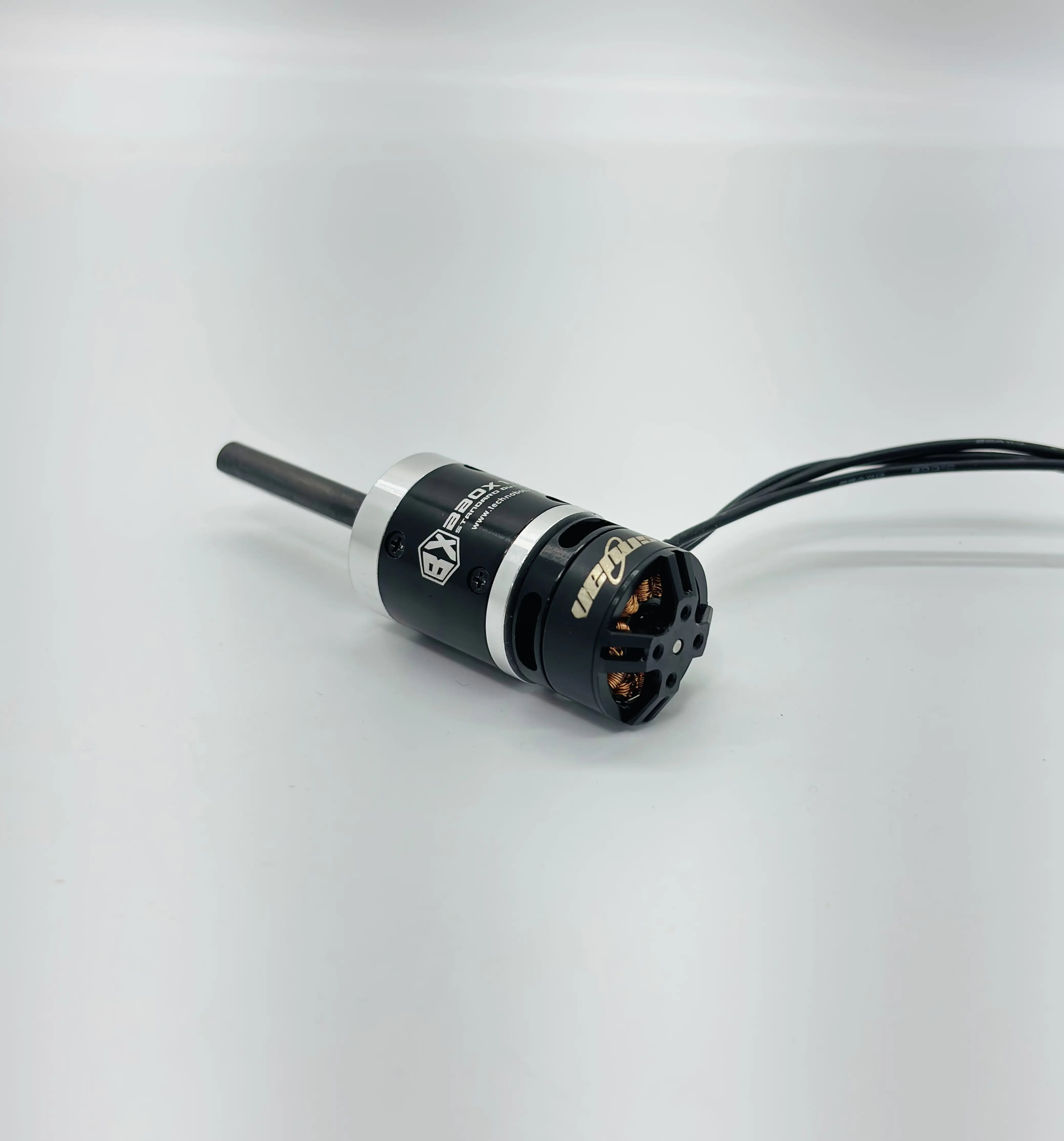

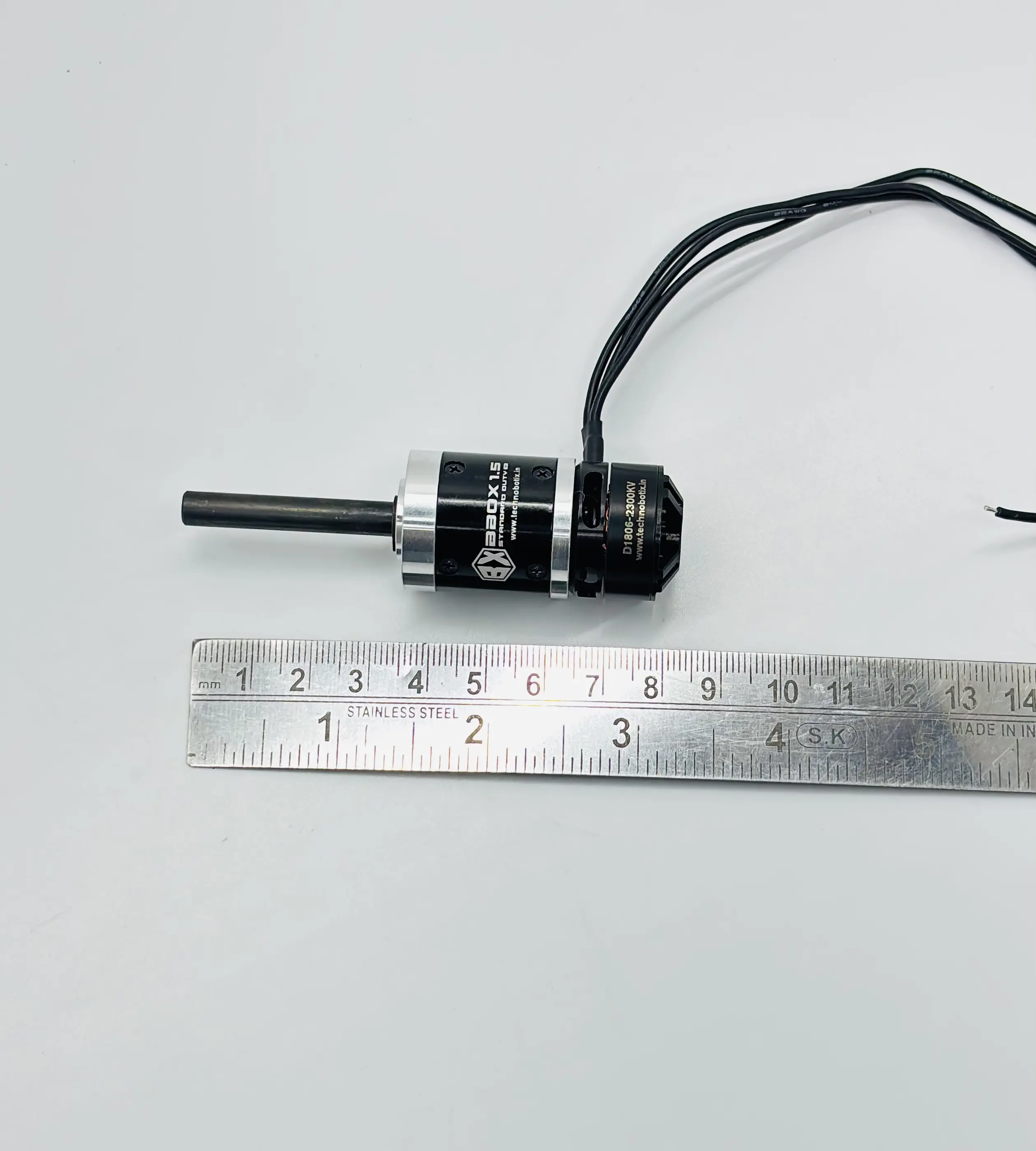

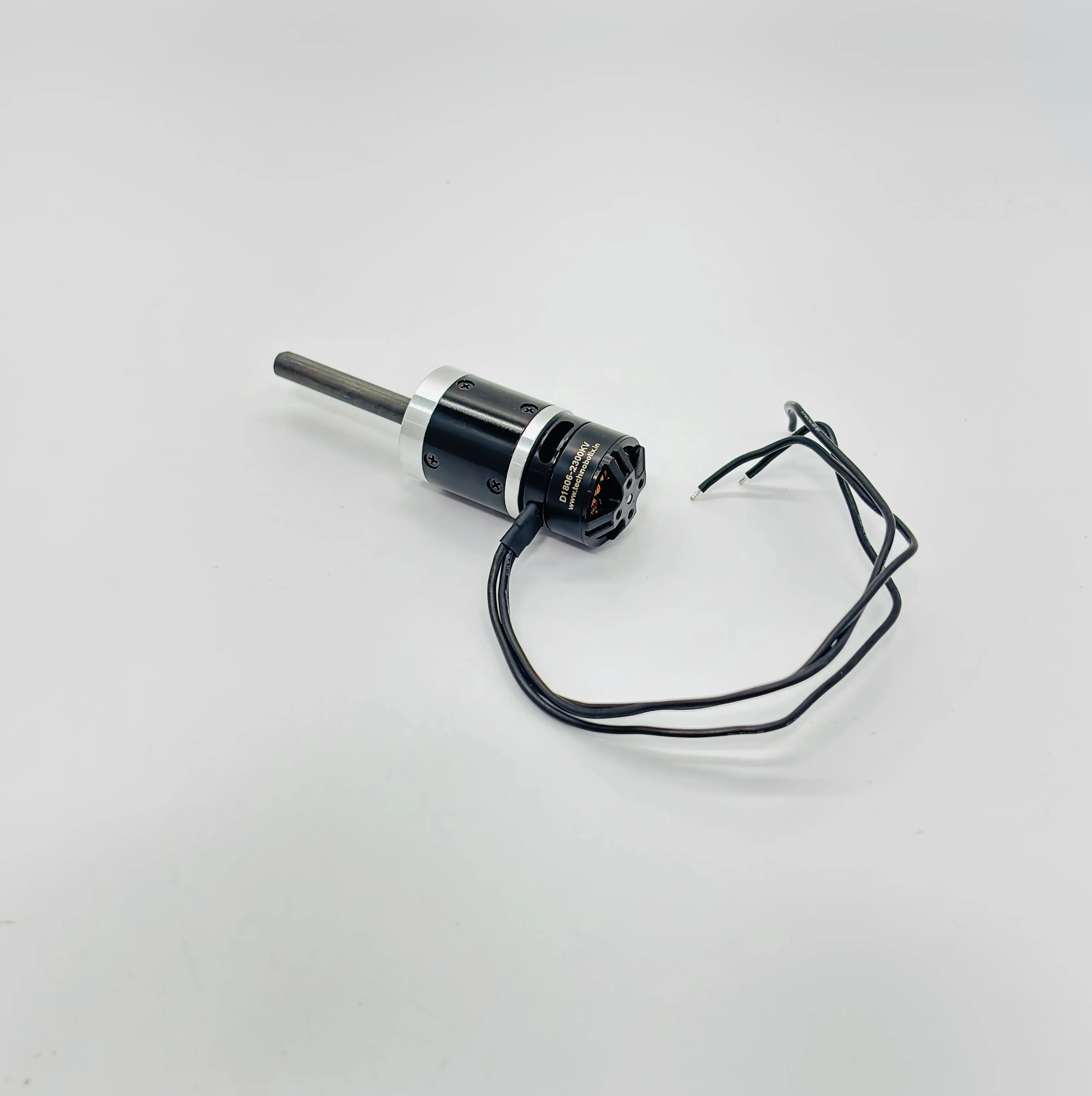

BBOX 1.5 Standrad Duty Gearbox With Venus D1806 2300KV Outrunner BLDC Motor

BBOX 1.5 Series – Combat Planetary Geared Motor

by Technobotix Pvt. Ltd. | Brand: BBOX

Specially designed for 1.5kg Beetleweight Combat Robots, the BBOX 1.5 Series planetary geared motor combines strength, compact design, and reliability – engineered for robot combat performance.

Specs:

Motor Specifications (BBOX-Venus 1806 Brushless Outrunner):

• Model: Venus 1806 Series – Custom-Wound High-Performance BLDC

• KV Rating: 2300KV

• Internal Resistance: 0.19 Ω

• Max Current (at 12V): 12.35 A

• No-Load Current (with gearbox): 1.93 A

• Recommended ESC: Electrocraze 35S-BL Brushless ESC

• Motor Diameter: 23.1mm

• Wire Gauge/Length: 24AWG / 15cm

Gearbox Specifications:

• Type: Precision Planetary Gearbox with full metal gear stages

• Bearings: Dual deep-groove ball bearings on output shaft

• Gear Ratio: 27:1

• Diameter: 24mm

• Output Shaft: 6mm hardened steel, 38mm length, D-flat precision machined

• Mounting Pattern: 4 x M2-0.40 on 18mm pitch circle (compatible with BBOX Flat Motor Mount)

Gearmotor Combined Specifications:

• RPM @ 3S LiPo: 1022 rpm

• RPM @ 4S LiPo: 1363 rpm

• Overall Length: 38 mm long + 6 mm shaft diameter

• Weight: 70 gram

Performance at Max Efficiency:

• Nominal Voltage: 12 V

• Current: 1.93 A

• Torque Output: 10.34 kgf.cm

• Output Speed: 1022 rpm

• Power Output: 108 W

• Efficiency: 75%

Package Includes:

1 x BBOX 1.5 Standrad Duty With venus 1806 BLDC Motor
