DRIVEASY PICK & PLACE KIT ADVANCED
Features:
Easy Assembly/Disassembly
Durable Construction
Lightweight Aluminum Chassis
All-Metal Gearbox
* Please note that all three kits will be provided unassembled. All the necessary parts will be included, but assembly is entirely the customer’s responsibility.
The Driveasy Grab Master (Pick and Place Kit Advanced) is designed for precision and durability in various applications. It features a robust 270 RPM geared motor that ensures reliable performance.
Additionally, the frame is constructed from high-grade Aluminum 6061, providing both strength and lightweight properties. Equipped with 4-inch polypropylene wheels, each with a thickness of 25.4 mm, the kit offers excellent stability and maneuverability. The bushing and adapter materials are made of precision aluminum, contributing to the overall durability of the system.
Furthermore, the drive configuration is a 4-wheel drive system, powered by a high-quality DC brushed motor. The hardware includes HT Allen bolts for secure assembly. Operating within a voltage range of 12V to 18V, the Driveasy Grab Master maintains an output shaft speed of 270 RPM.
Moreover, with dimensions of 300 mm in length, 300 mm in width, and 101 mm in height, it has a weight of 3.00 kg, making it a compact and efficient solution for advanced pick-and-place tasks.
Specs:
Motor: 270rpm geared motor
Frame Material: Aluminum 6061
Wheel Diameter: 4 inches
Wheel Thickness: 25.4 mm
Wheel Material: Polypropylene
Bushing and Adapter Material: Precision Aluminum
Drive Configuration: 4-Wheel Drive
Motor Type: High-Quality DC Brushed Motor
Hardware: HT Allen Bolt
Operating voltage: 12V to 18 V
Output shaft speed (rpm): 270
Length (mm): 300
Width (mm): 300
Height (mm): 101
Weight (g): 3.00 kg

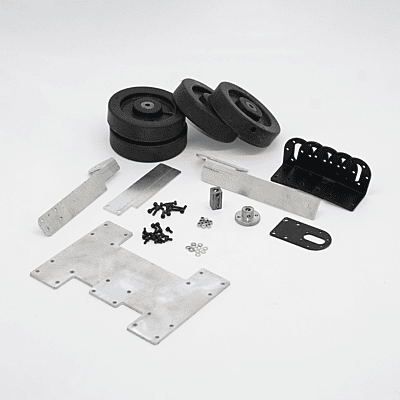

Package includes:

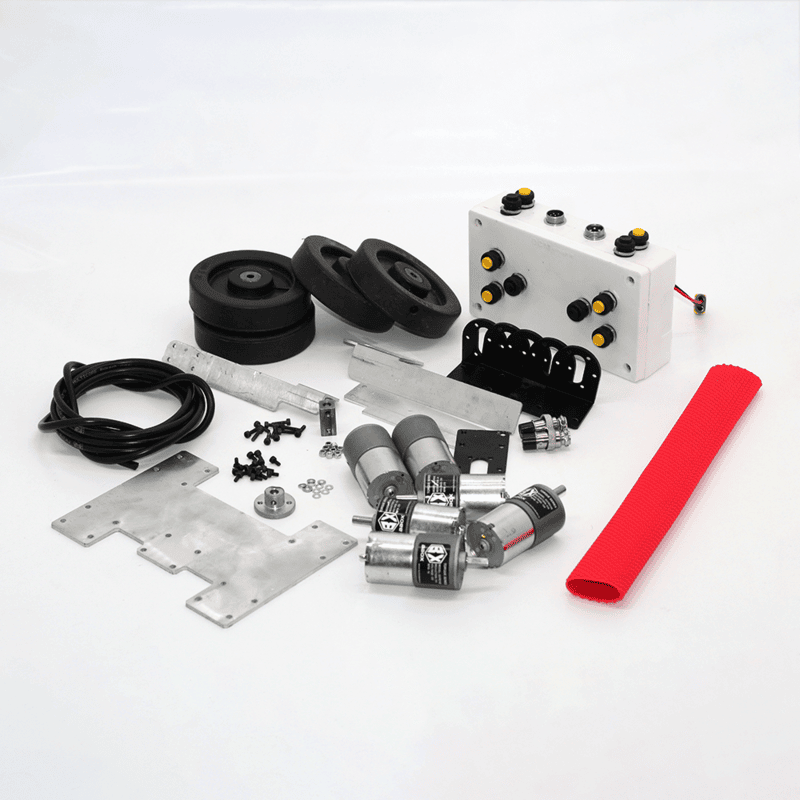

The DRIVEASY Grab Master Kit (With PP wheels) includes the following materials:
Bbox Torque Series Centric Shaft 270 RPM D37R24C – Quantity: 4
37mm DC Gear Motor Block L Shape Motor Bracket – Quantity: 5
Driveasy Pick and Place Base Plate (3mm) – Quantity: 1
Allen Cap 3 * 12 – Quantity: 24
Allen Bolt 3 * 6 – Quantity: 18
Nylock Nut 3 – Quantity: 24
Washer M3 – Quantity: 24
Polypropylene Wheel including Hub 4 x 1 in Black (101.6 x 25.4 mm) – Quantity: 4
Bbox Torque Series Eccentric Shaft 16 RPM D37R314E – Quantity: 1
Bbox Torque Series Eccentric Shaft 11 RPM D37R516E – Quantity: 1
Driveasy 5 Channel Wired Remote – Quantity: 1
Driveasy Pick and Place Robotic Arm Only – Quantity: 1

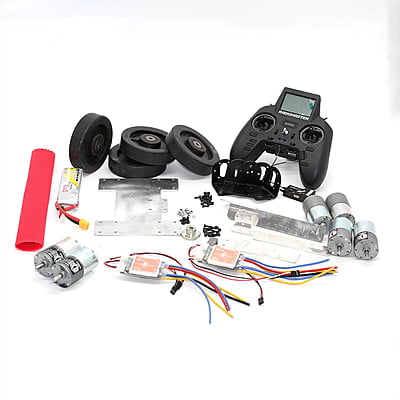

The DRIVEASY Grab Master RTR Kit (With PP wheels)includes:
DRIVEASY Grab Master Kit (With PP wheels) – Quantity: 1
Electrocraze 20D-BD Dual Channel Bidirectional ESC – Quantity: 2
GNB GAONENG 3S1P 2200MAH 11.1V 100C LIPO BATTERY – Quantity: 1
Radiomaster Zorro Radio Controller – CC2500 – Quantity: 1
Radiomaster R88 V2 Receiver | PWM & SBUS Output– Quantity: 1

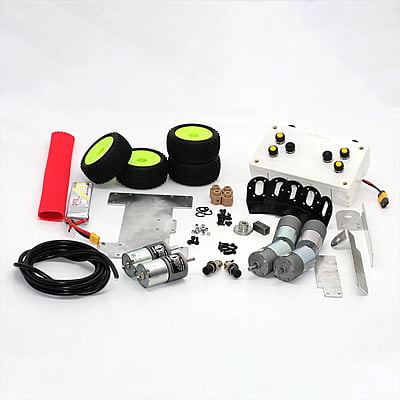

The DRIVEASY Grab Master Kit (With Buggy wheels) includes the following materials:
Bbox Torque Series Centric Shaft 270 RPM D37R24C - Quantity: 4
Bbox 37mm DC Gear Motor Block L Shape Motor Bracket - Quantity: 5
Driveasy Pick and Place Base Plate_3mm - Quantity: 1
Generic Allen Cap 3*12 - Quantity: 24
Generic Allen Bolt 3*6 - Quantity: 18
Generic Nylock Nut 3 - Quantity: 24
Generic Washer M3 - Quantity: 24
Generic Buggy Wheel 4PCS 1/8 Including Hub in Red - Quantity: 1
Generic M10 Anti Slip Nut - Quantity: 4
Bbox Torque Series Eccentric Shaft 16 RPM D37R314E - Quantity: 1
Bbox Torque Series Eccentric Shaft 11 RPM D37R516E - Quantity: 1
DRIVEASY Pick and Place Robotic Arm Only - Quantity: 1
Switchy Pick and Place Wired Remote 5ch - Quantity: 1

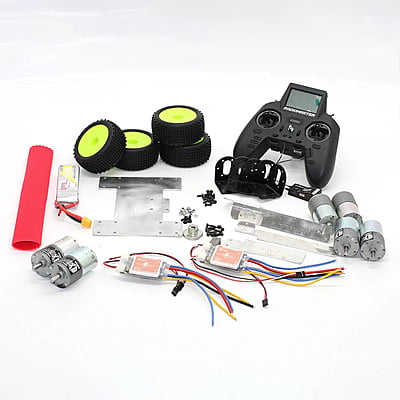

The DRIVEASY Grab Master RTR Kit (With Buggy wheels) additionally includes the following materials:
DRIVEASY Grab Master Kit (With Buggy wheels) – Quantity: 1
Electrocraze 20D-BD Dual Channel Bidirectional ESC – Quantity: 2
GNB GAONENG 3S1P 2200MAH 11.1V 100C LIPO BATTERY – Quantity: 1
Radiomaster Zorro Radio Controller – CC2500 – Quantity: 1
Radiomaster R88 V2 Receiver | PWM & SBUS Output– Quantity: 1

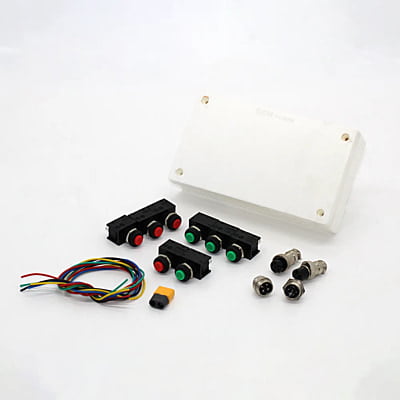

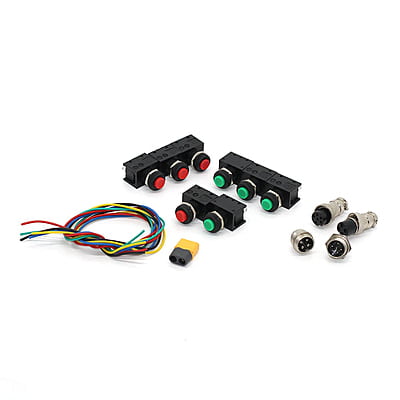

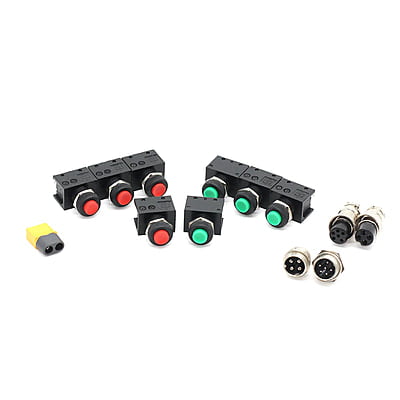

The DRIVEASY 5CH Wired Remote includes:
DRIVEASY 5 CH WIRED REMOTE BOX – Quantity: 1
ELCOM Micro Power Switch (Unshrouded CAP) MPU-1 – Quantity: 10
500 Series Mini Round Shell P 4 Pin – Quantity: 1
500 Series Mini Round Shell P 6 Pin – Quantity: 1
Generic 14/38 4 Core Unshielded Industrial Cable – Quantity: 2 (2M EACH)
Amass XT60 Male & Female Connectors Pair | Nylon – Quantity: 1
The DRIVEASY Pick and Place Robotic Arm includes:
Pick And Place Robot Arm Coupling – Quantity: 2
Pick And Place Robot Arm Gripper Motor Mounting Plate – Quantity: 1
Pick And Place Robot Arm 1st Axis – Quantity: 1
Pick And Place Robot Arm 2nd Axis – Quantity: 1
Pick And Place Robot Arm Gripper – Quantity: 1
37mm DC Gear Motor Block L Shape Motor Bracket – Quantity: 1
Amass XT30 Connectors Male & Female 1 Pair Nylon – Quantity: 1
